Experience greater driving pleasure with the Aweltec EVMaster EV Charger, providing reliable charging in various environments.
Experience greater driving pleasure with the Aweltec EVMaster EV Charger, providing reliable charging in various environments.
| Item No | WJ-EN04-E-V2+WJ-EN04-E-E2 |
|---|---|
| Plug/Connector Type | Type 2 |
| Rated Voltage | 480V |
| Rated Frequency | 50Hz～60Hz |
| Rated Current | 32A |
| Maximum Charge Capacity | 22.1kW |

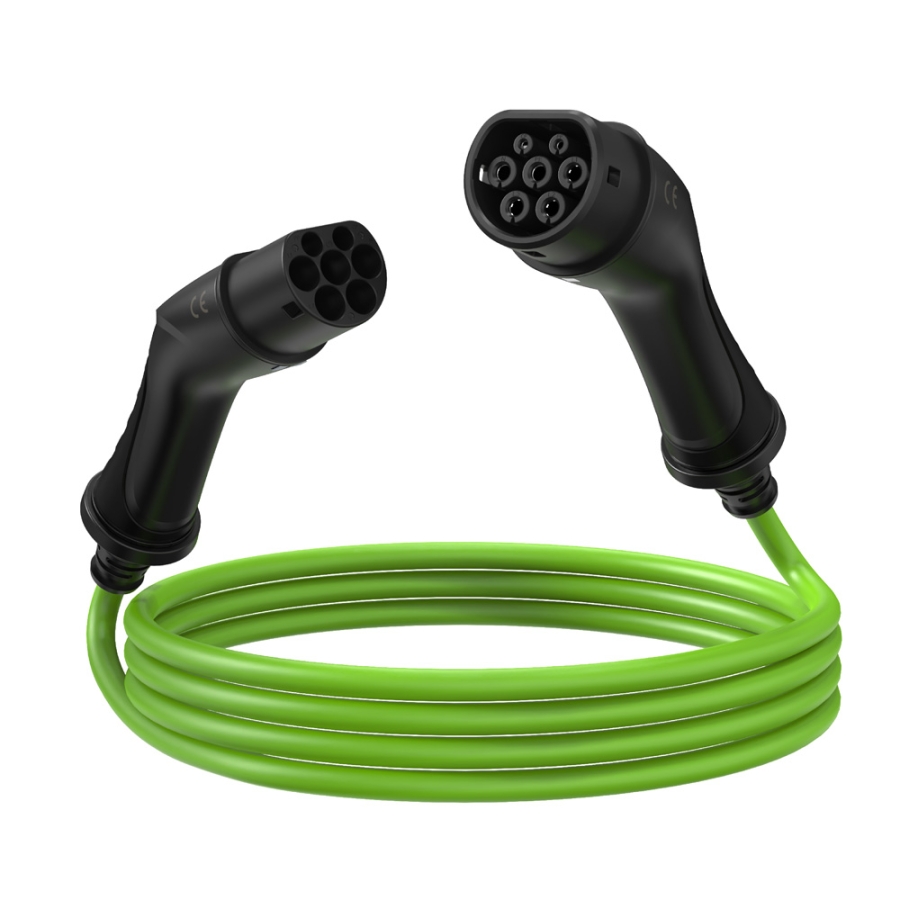

| EV Cable Length | 5m |
| Compatible Supply Type | Three-Phase |
| IP Rating | IP55(Mated) IP54(Not mated) |
| Sprial | NO/YES(Optional) |

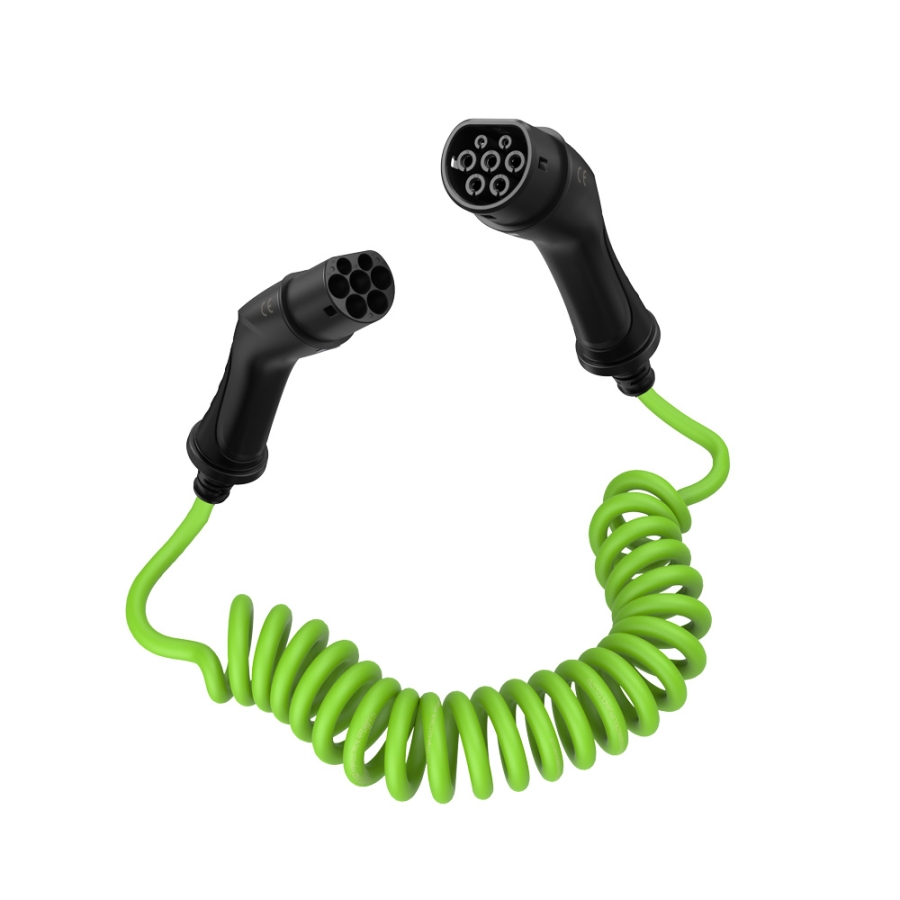

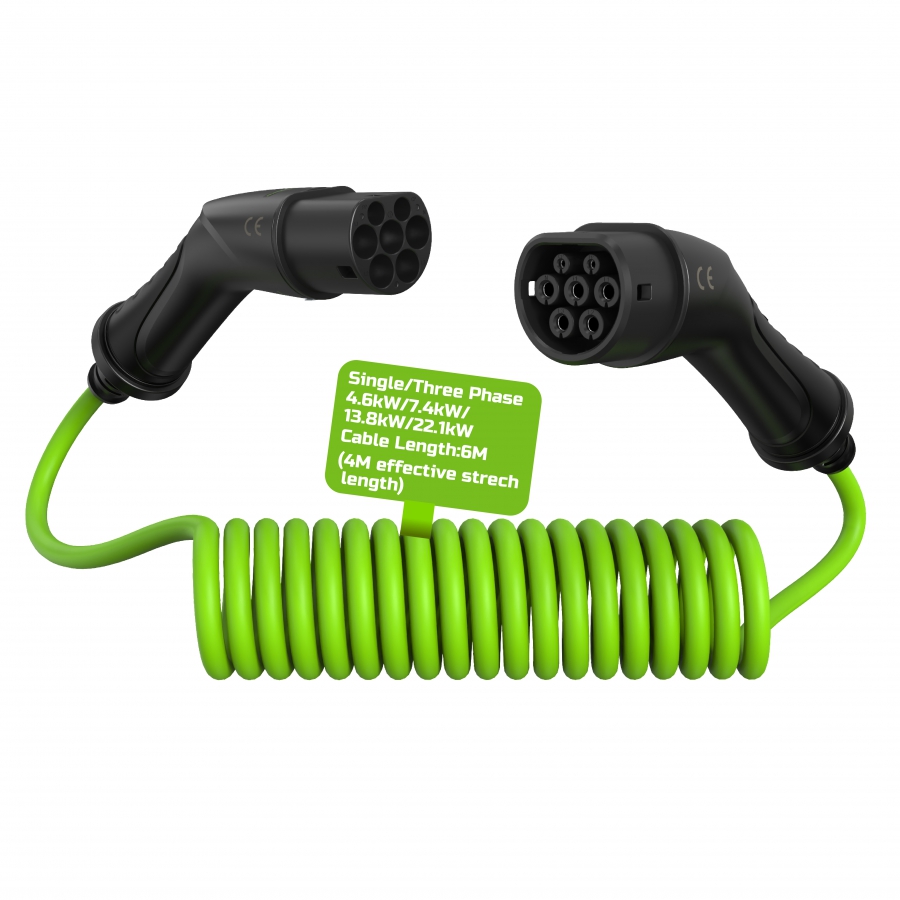

| Sprial Cable Length | 6m（4m effective stretch length） |

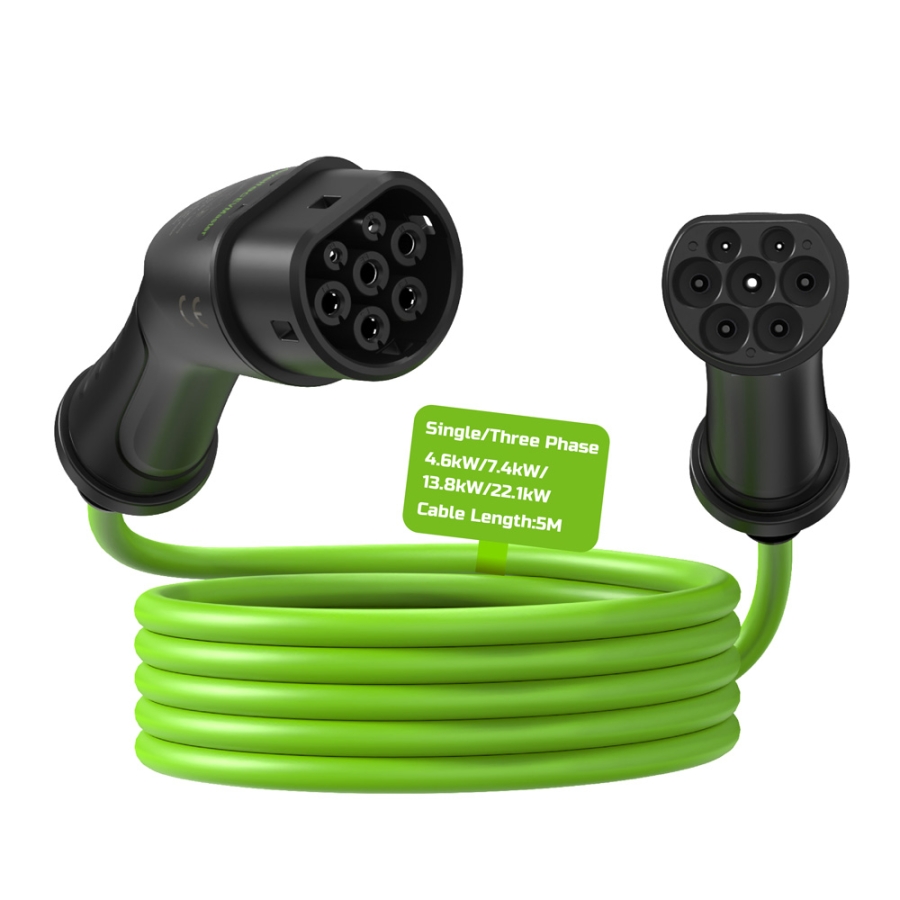

High-Speed EV Charging: This Type 2 cable supports a maximum output of 480V/32A (22.1kW) Three-Phase, with backward compatibility for 230V/16A (3.6kW) Single-Phase or Three-Phase. Compatible with both 16A and 32A charge points at home and public stations, it enables efficient EV charging via AC power, delivering rapid energy replenishment wherever you are.
Wide Compatibility: This EV charging cable supports all electric vehicles and plug-in hybrids equipped with Type 2 (Mennekes) 7-pin inlets or CCS2 7+2-pin inlets compliant with IEC 62196-2. Delivering broad interoperability, it enables seamless charging across vehicle brands and models.
Enhanced Safety: Featuring CE and RoHS certifications, the Type 2-to-Type 2 cable meets stringent safety requirements for reliable EV charging. It is made of high flame retardant material. it ensures stable performance during extended use at charging stations.
Durable TPU Construction: It is crafted from durable and robust materials, with excellent abrasion resistance and impact strength, also features high-grade copper wires and a thickened insulation jacket, providing superior protection against wear and tear. The IP54 rating sealing technology ensures you can safe to charge in any weather.
Portable Organization: The charging cable Type 2 comes with a portable storage bag, Our rubber dust caps keep the connectors clean and dry. These additions keep your EV cables neatly stored on your road.
