Experience greater driving pleasure with the Aweltec EVMaster EV Charger, providing reliable charging in various environments.
Experience greater driving pleasure with the Aweltec EVMaster EV Charger, providing reliable charging in various environments.

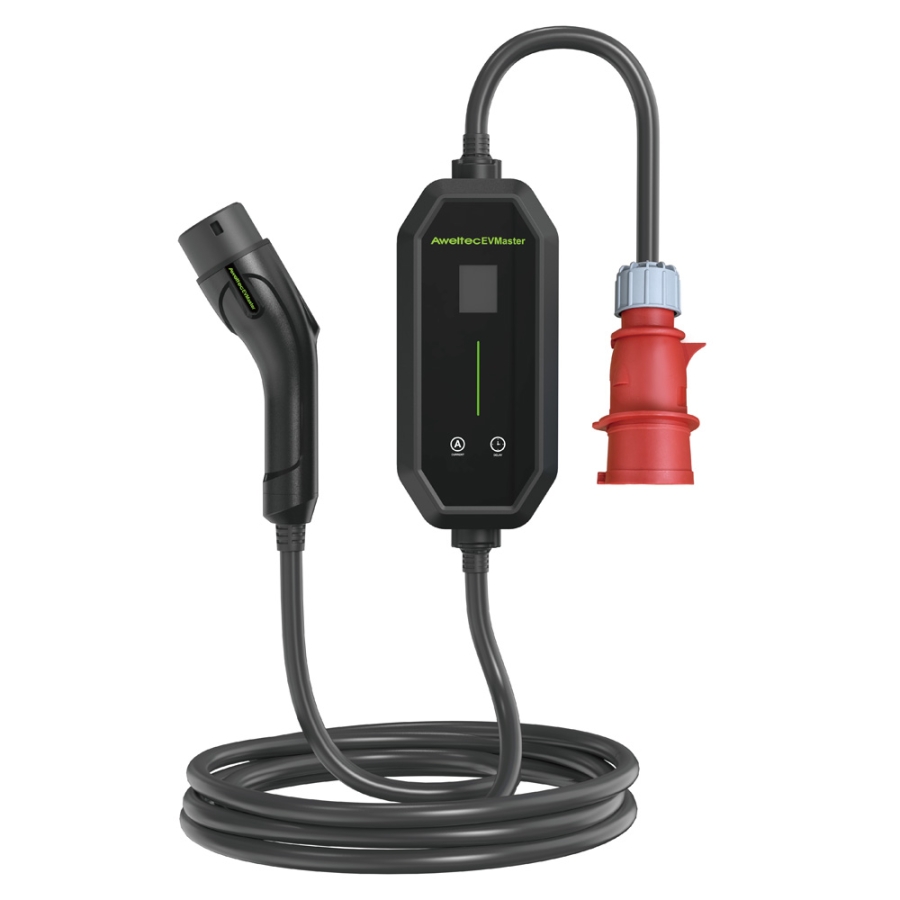

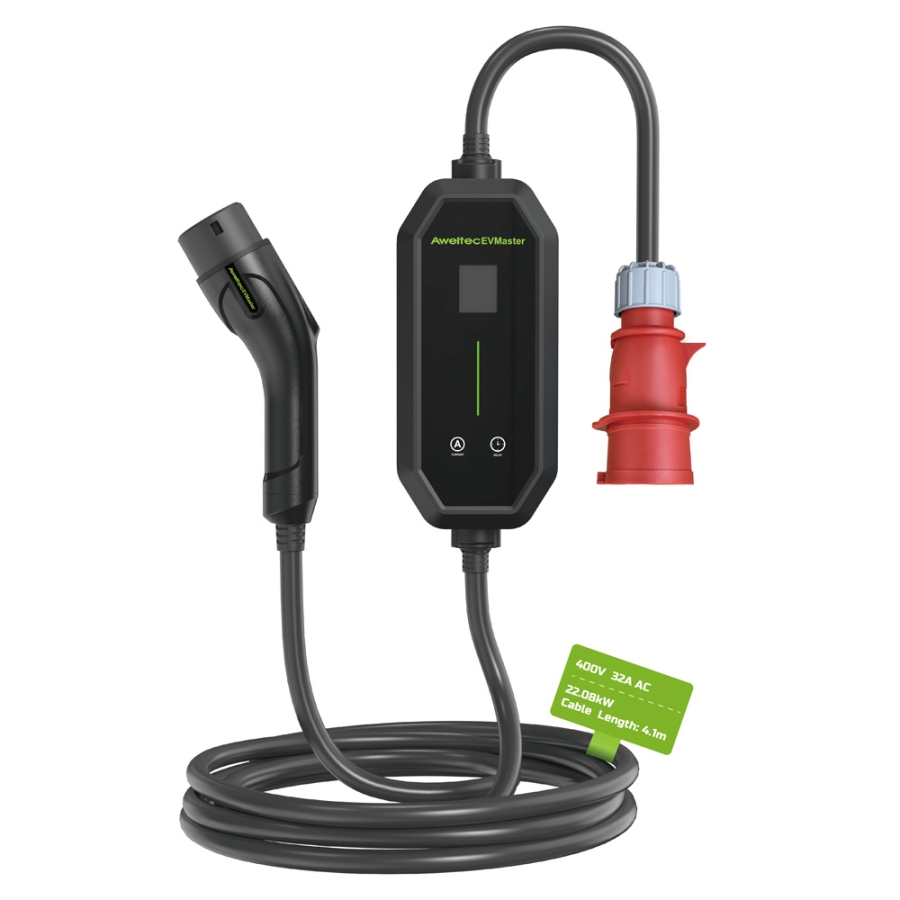

| Item No | EVC HP22 |
|---|---|
| Control Box Display | LED+LCD |
| Plug Type (Power Input) | CEE 32A/400V 5Pin |
| Plug/Connector Type | Type 2 |
| Rated Voltage | 400V AC |
| Rated Frequency | 50Hz |
| Rated Current | 32A AC |
| Maximum Charge Capacity | 22kW |
| EV Cable Length | 4.1m |
| Compatible Supply Type | Three-Phase |
| IP Rating | In-Cable box:IP67 AC Charging Connector: IP55(Mated) IP54(Not mated) |
| Certificate | CE |
Heavy-duty Industrial-style Casing: Sturdy, durable, and featuring an exquisite matte black finish.
Ultra-Fast Charging: 22kW High-Speed Charging. Equipped with dynamic current adjustment, our charger delivers a maximum output of 22kW. Designed for seamless integration with European household circuits (socket compatibility guidance included), it effortlessly supports daily commutes, long journeys, and emergency power needs. Actual power may vary based on vehicle specifications and local grid conditions.
Smart Energy Savings: Off-Peak Scheduling & Cost Optimization. Programmable delay charging (1-12 hours) intelligently aligns with low-tariff periods, reducing electricity costs by up to 30%. A user-friendly interface lets you prioritize affordability without compromising convenience.

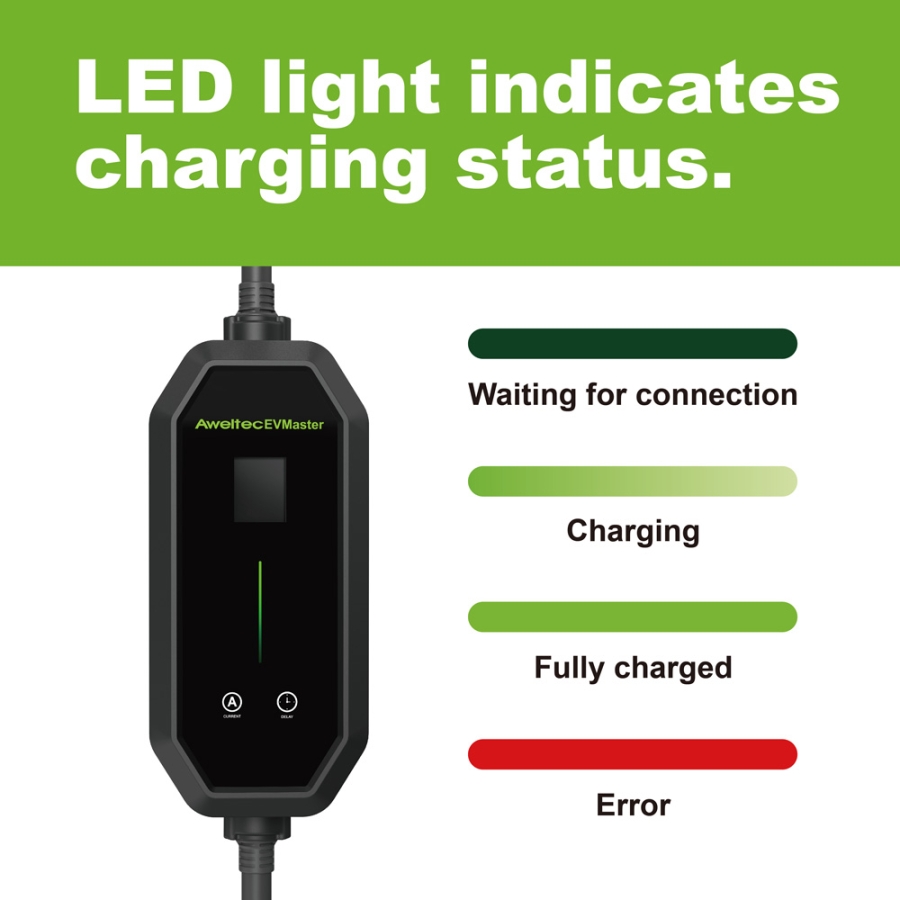

Real-Time Safety Monitoring: HD Interactive Display. Track critical metrics live: current, voltage, temperature and more. Advanced safeguards auto-pause charging if anomalies arise (e.g., overtemperature or current surges), resuming only when conditions stabilize.

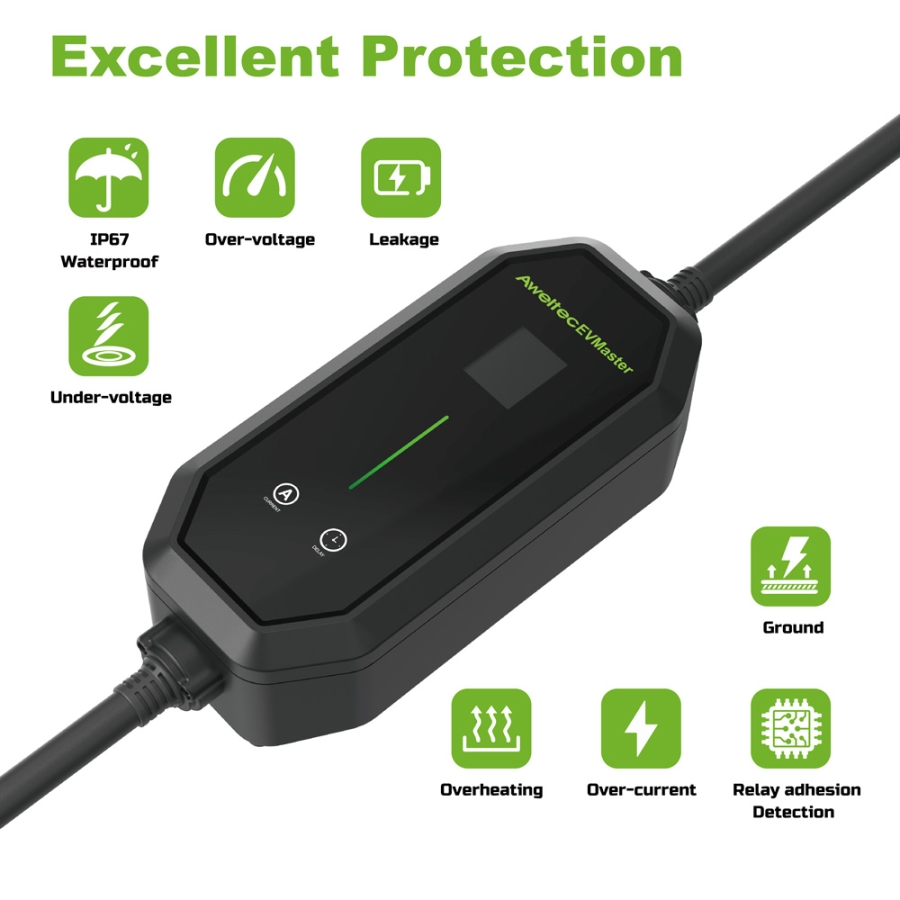

Excellent Protection: All-Weather Ready. IP67 Water/Dustproof | -25°C–45°C Tolerance. The 5m TPU cable is highly reliable, thanks to its excellent wear resistance and flame retardant properties, making it a safe and durable choice for use. The terminal part is silver-plated, which significantly enhances conductivity and effectively reduces heat generation. Moreover, the product has undergone rigorous quality testing and has consistently met all required standards. 7-layer protection: Provides multiple protection features such as over-current, over-voltage, undervoltage, leakage, overheating, ground and relay adhesion detection protection.

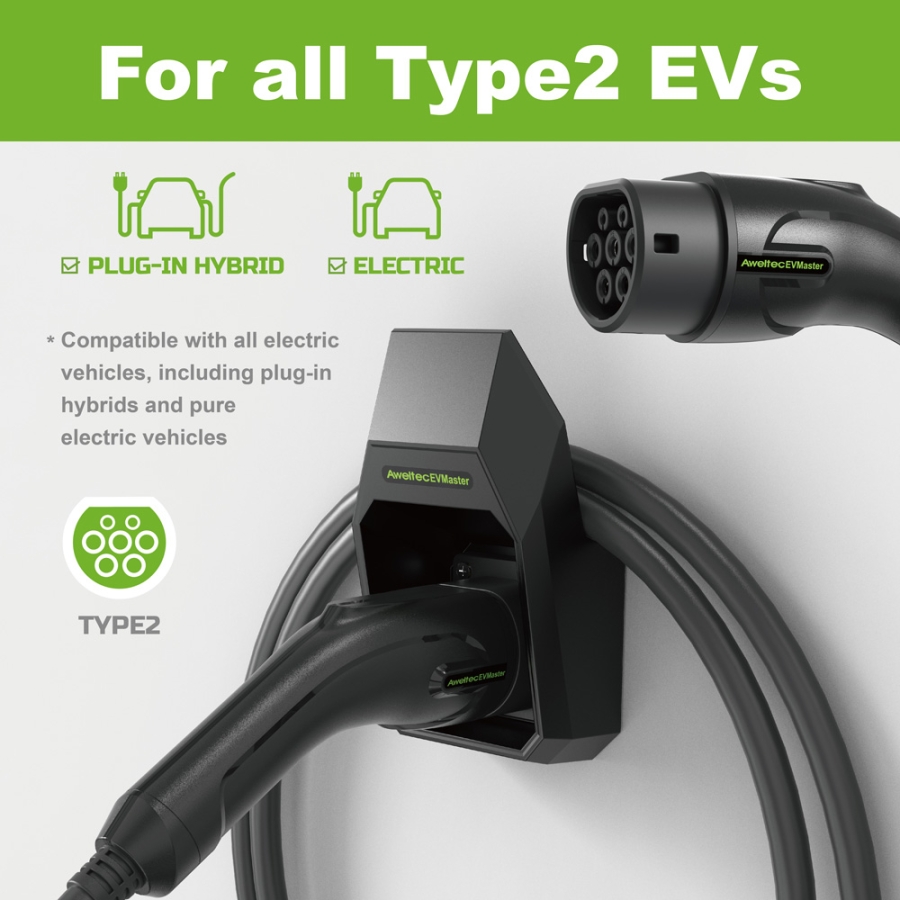

Universal Compatibility: Plug & Charge. Type 2 Connector (IEC62196-2 Certified). Seamlessly powers Tesla, BMW, Mercedes, Volvo, Peugeot, and other EU models with Type 2 ports. Compact travel-friendly design fits in any trunk.
